Product Description
Product details
The compact and powerful Hella Marine high-performance handheld searchlight provides an indispensable aid that makes night sailing and berthing maneuvers extremely easy. The searchlight impresses with powerful brightness. From a triple 10 watt LED chipset it generates 2500 lumens of neutral white light with a power consumption of only 36 W*. The corrosion- and UV-resistant housing protects the internal electronics from all external influences. Furthermore, the electronics are protected by integrated reverse polarity, overvoltage and undervoltage protection. This guarantees a long service life.

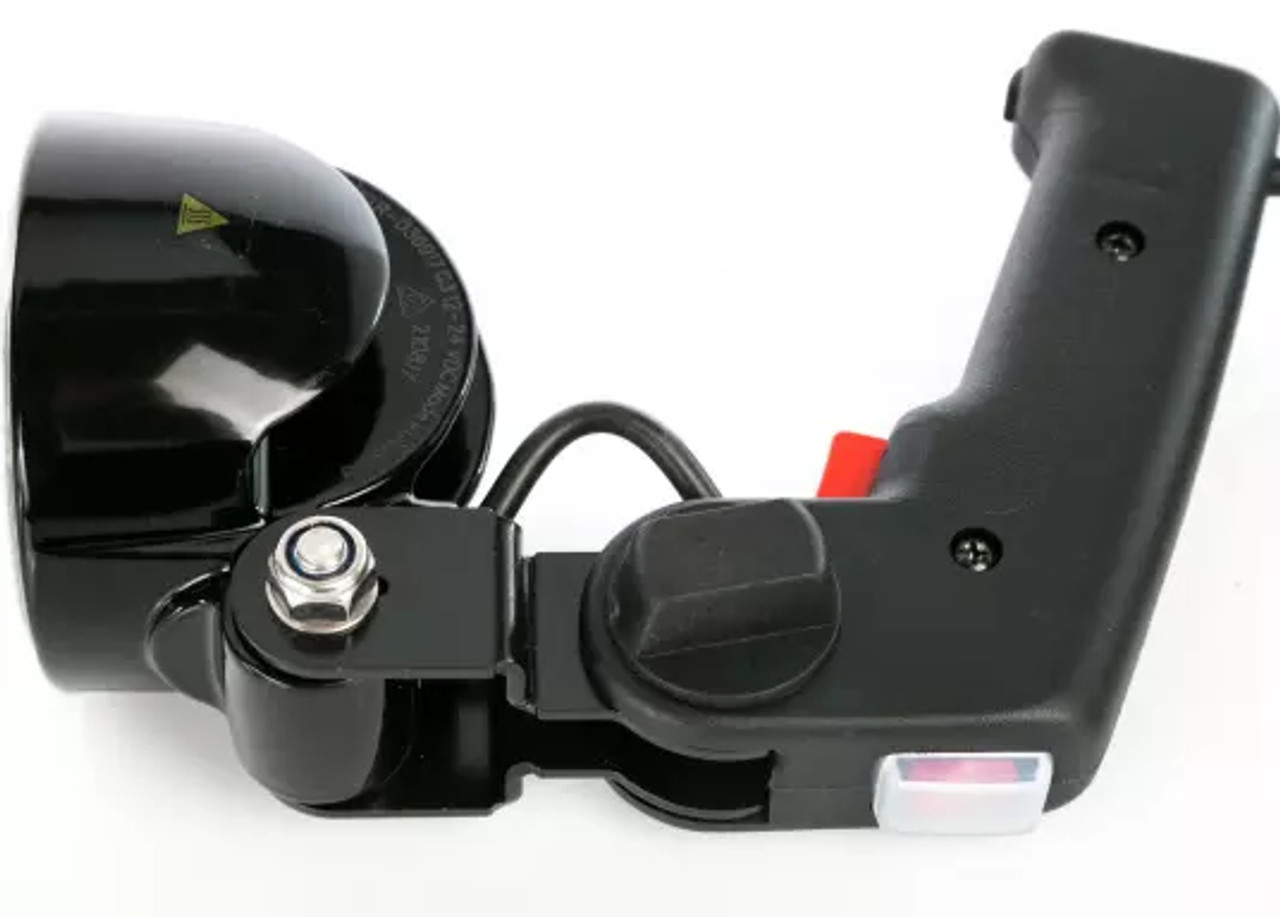

The ergonomic handle is equipped with a watertight ON/OFF switch on the top. A morse key is also accessible in the grip area. At the bottom of the handle there is an adaptor bushing (17.5 mm inner-Ø) for a separately available mounting foot, which can be mounted firmly on deck. By loosening a thumbscrew, the searchlight can perfectly be aligned on the mounting foot and the grip position can be adjusted as needed.
Power is supplied via a coiled cable with cigarette lighter plug. Integrated inside the plug: a small red LED indicating the presence of the operating voltage and a 15 A miniature fuse (6.3 x 32 mm). The coiled connection cable is approx. 70 cm long and may be extended to a length of approx. 3.5 m.
Specifications
Note
The ergonomic handle is equipped with a watertight ON/OFF switch on the top. A morse key is also accessible in the grip area. At the bottom of the handle there is an adaptor bushing (17.5 mm inner-Ø) for a separately available mounting foot, which can be mounted firmly on deck. By loosening a thumbscrew, the searchlight can perfectly be aligned on the mounting foot and the grip position can be adjusted as needed.
Power is supplied via a coiled cable with cigarette lighter plug. Integrated inside the plug: a small red LED indicating the presence of the operating voltage and a 15 A miniature fuse (6.3 x 32 mm). The coiled connection cable is approx. 70 cm long and may be extended to a length of approx. 3.5 m.
Specifications
| Light cone | Spot |
| Housing properties | Premium corrosion-resistant, UV-resistant |
| Brightness | 2500 lumens |
| Operating voltage | Multivolt 9 - 33 V DC |
| * Performance / Power consumption |
35 W @ 12 V / 30 W @ 24 V 2.9 A @ 12 V / 1.2 a @ 24 V |
| Electric wire | Coiled cable with cigarette lighter plug, extendable up to 3.5 m |
| Protection degree | IP6K9K, IP6K8 fully protected |
Note
- With the appropriate handle setting the searchlight can also be placed on the ground. The radiation angle can also be adjusted in this position. In order to do so, a self-locking nut must be loosened - a tool with a 13mm wrench size is required.
- Matching spare fuses can be found under item 10244.
- During operation, the searchlight housing will be warm - this is normal.
