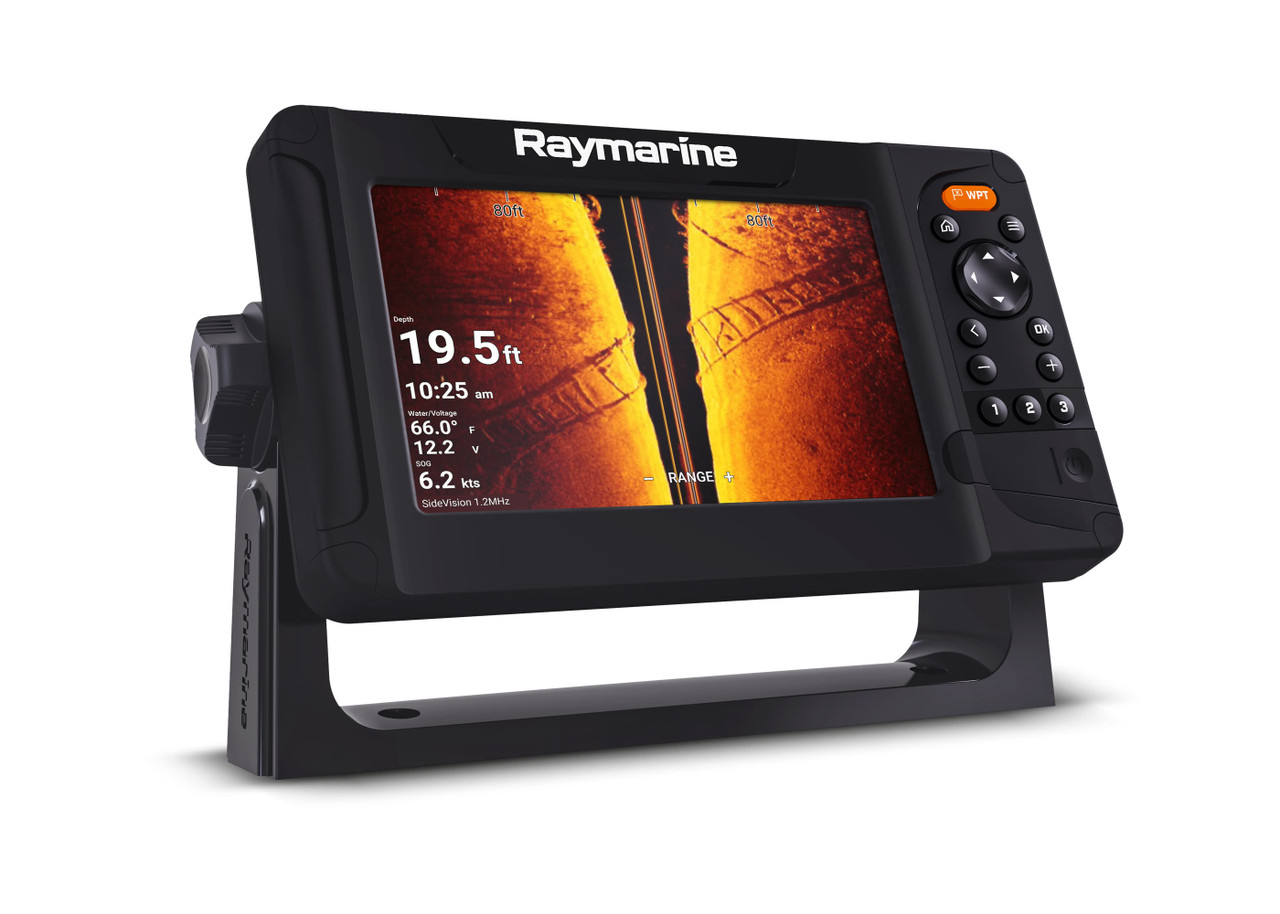

RAYMARINE Element 7 HV PN E70532

Smart 7" multifunction display with user-friendly interface and integrated GPS antenna. A classic keypad and the Raymarine LightHouse Sport interface make for intuitive operation. With built-in HyperVision sonar technology for outstanding image quality of the underwater world. The fast QuadCore processor is more than adequate for mapping and continuous 3D rendering. Supplied without transducer.

Raymarine Quantum RadarThe Raymarine Quantum radar antenna can be connected to the ELEMENT-HV via the integrated WiFi interface.
The Raymarine QUANTUM is the next generation of marine radar antennas with CHIRP technology. The QUANTUM impresses with pin-sharp images on both short and long distances.


NMEA2000 support

With the NMEA2000 (Micro-C) interface you can clearly display AIS, tank, engine, compass and wind data. This allows you to view incoming AIS targets directly on nautical charts and keep an eye on the surrounding shipping traffic. With the help of the data bar you can monitor your current tank levels for instance.


HyperVision 1.2 MHz Sonar Technology
HyperVision sonar technology uses top frequencies of up to 1.2 megahertz and CHIRP technology. This allows for a much higher image resolution compared to other systems. The top frequency of 1.2 MHz can reach a range of up to 30 meters at a beam angle of 180°. Use it to bring DownVision, SideVision and RealVision 3D imaging to a new level and to see structures, underwater vegetation and fish in photo-like clarity.
With the standard 350 kHz CHIRP sonar, you can receive high-resolution images at a range of up to 183 meters (DownVision) and 91 meters (SideVision / RealVision 3D). In addition, the classic CHIRP sonar operates at 200 kHz down to a depth of 274 metres.


Raymarine LightHouse Sport

Intuitive and visually striking user interface. Thanks to pre-configured home screens, every user has the start screen needed for his or her needs immediately at hand.
Thanks to the ergonomically positioned buttons, navigation through the menus and placing waypoints and routes is quick and easy even without a touchscreen. Through an NMEA2000 interface, the Element-S can display a wide range of data from external devices such as AIS receivers or tank sensors.

Your own nautical charts with RealBathy
With the new RealBathy function you can create your own nautical charts. Simply activate the function and your Element multifunction display with sonar function will create the nautical chart of your area. You can determine the overlay and display safety depths. Insert a large enough memory card into your device to do so.
Technical specifications
Depth / fishfinder views
Depending on the optionally connected transducers, the chartplotter can display the following depth views. The pure depth display refers to transducer data received via a NMEA0183 or NMEA2000 interface. Some functions can be retrofitted via external modules.
