Product Description

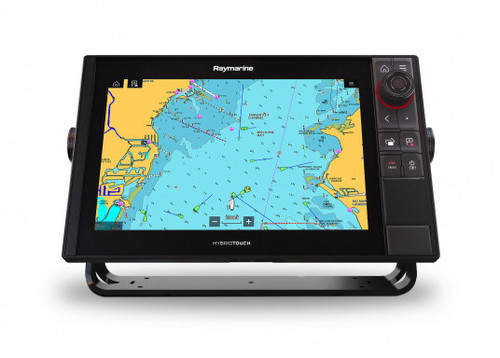

RAYMARINE AXIOM+
HydroTough™ display, more memory, faster processor
Featuring the new Lighthouse Dartmouth operating system and a blazing fast quad-core processor, as well as a large integrated memory, this multifunctional display boasts outstanding performance. Furthermore, like its predecessors, the AXIOM+ is expandable so its capabilities can grow as needed.
The new HydroTough™ display is significantly brighter than previous models and can be operated quickly and precisely under any conditions.
The new HydroTough™ display is significantly brighter than previous models and can be operated quickly and precisely under any conditions.
HydroTough™ display
The AXIOM+ series HydroTough™ IPS LCD display is 25% brighter than displays in previous series. Furthermore, the display is greater impact resistance and thanks to its nano coating, water and dirt simply rolls off. This allows the Raymarine AXIOM+ multifunction display.to be used precisely and quickly under all conditions.
Lightning-fast performance at the touch of a finger
Clear app icons make orientation easier, a simple swipe across the multifunctional display activates the sidebar with the data display.
Using drag and drop, the data fields can be positioned anywhere on the screen in different sizes.
The homepage with the user profile and personal configuration can be saved permanently on the device. With just a few finger touches you can take control via touchscreen.
The chartplotter can also be adapted to individual requirements. Clear menus also provide quick access to the various chart modes.
Simply placing the tip of your finger on the chart is enough to position the cursor.
Using drag and drop, the data fields can be positioned anywhere on the screen in different sizes.
The homepage with the user profile and personal configuration can be saved permanently on the device. With just a few finger touches you can take control via touchscreen.
The chartplotter can also be adapted to individual requirements. Clear menus also provide quick access to the various chart modes.
Simply placing the tip of your finger on the chart is enough to position the cursor.
New LightHouse Dartmouth operating system
Network & Connection
For integration into an existing network or creating a new network, the AXIOM units have NMEA2000 and Ethernet interfaces.
The devices also feature a microUSB port, integrated WiFi and Bluetooth.
The devices also feature a microUSB port, integrated WiFi and Bluetooth.
The best charts
Raymarine's multifunction devices allow you to choose between charts from Navionics, C-Map and an extended Lighthouse chart selection.
The detailed grid and vector charts make coastal navigation very easy
and also contain options for 3D charts and satellite support.
The detailed grid and vector charts make coastal navigation very easy
and also contain options for 3D charts and satellite support.
Technical data
| Display size | 12" |
| Resolution | 1280 x 800 |
| Display type | Multitouch with HydroTough (resistant coating) |
| Brightness | 1800 nits |
| Viewing angle | 88° top, bottom, left, right |
| Voltage | 12 V DC (8 - 16 V DC) |
| Power consumption | 15.48 W |
| Ethernet | Yes,1x port |
| NMEA2000 | Yes,1x port |
| NMEA0183 | No |
| SeaTalkNG | Adapter cable necessary |
| USB | 1x USB mircoAB |
| WiFi | Yes |
| Bluetooth | Yes 4.0 |
| GPS | Integrated (10 Hz, 28 channel) GPS/GLONASS/Galileo/Beidou |
| Sonar | Optional |
| Radar | Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas |
| AIS | Yes, via NMEA2000 |
| Chart compatibility | Navionics, C-MAP and Lighthouse |
| Card slot | 1x |
| Autopilot operation | Evolution autopilot |
| Thermal image | FLIR AX8, M232, M300 series, M400, M500 |
| Video/camera | Compatible with CAM210IP and CAM220IP (max. 10 cameras) |
| Operating temperature | -25 to +55 °C |
| Storage temperature | -30 to +70 °C |
| Waterproof | IPX6 / IPX7 |
| Dimensions | 314 x 217 x 77 mm |
| Weight: | 2.72 kg |
| Included | Multifunction display, bracket, thumbscrews, suncover, seals, threaded screws, power and data cables, and documentation. |
