Product Description
The QUIET FLUSH toilet is notable for its noiseless operation and features the option of regulating the level of flushing water in the toilet bowl. The flushing process is started by a single large pushbutton that simultaneously activates the flushing water supply and the chopper discharge pump. An additional rocker switch enables separate control of the flushing water supply and the discharge pump, which means that the flushing water level in the tank can easily be increased or decreased. Depending on the user's requirements, this allows for more economical water consumption or, if necessary for reasons of user comfort, an increase in the flushing water level in the basin. This design also allows the basin to be emptied completely in heavy seas. As well as the large comfort bowl, the toilet also has a soft close lid.
Installation
The toilet can be connected to any pressurised water supply with a flow rate of 13.5 l/min. This can be a fresh water system including a drinking water supply or a deck washing system that uses either fresh water or sea water. In any case, the toilet must be connected to a pressurised water supply, which is always in operation in an emergency when the boat is in use.
Functional characteristics
- Very quiet flushing - like a home toilet
- Large comfort bowl with soft close lid

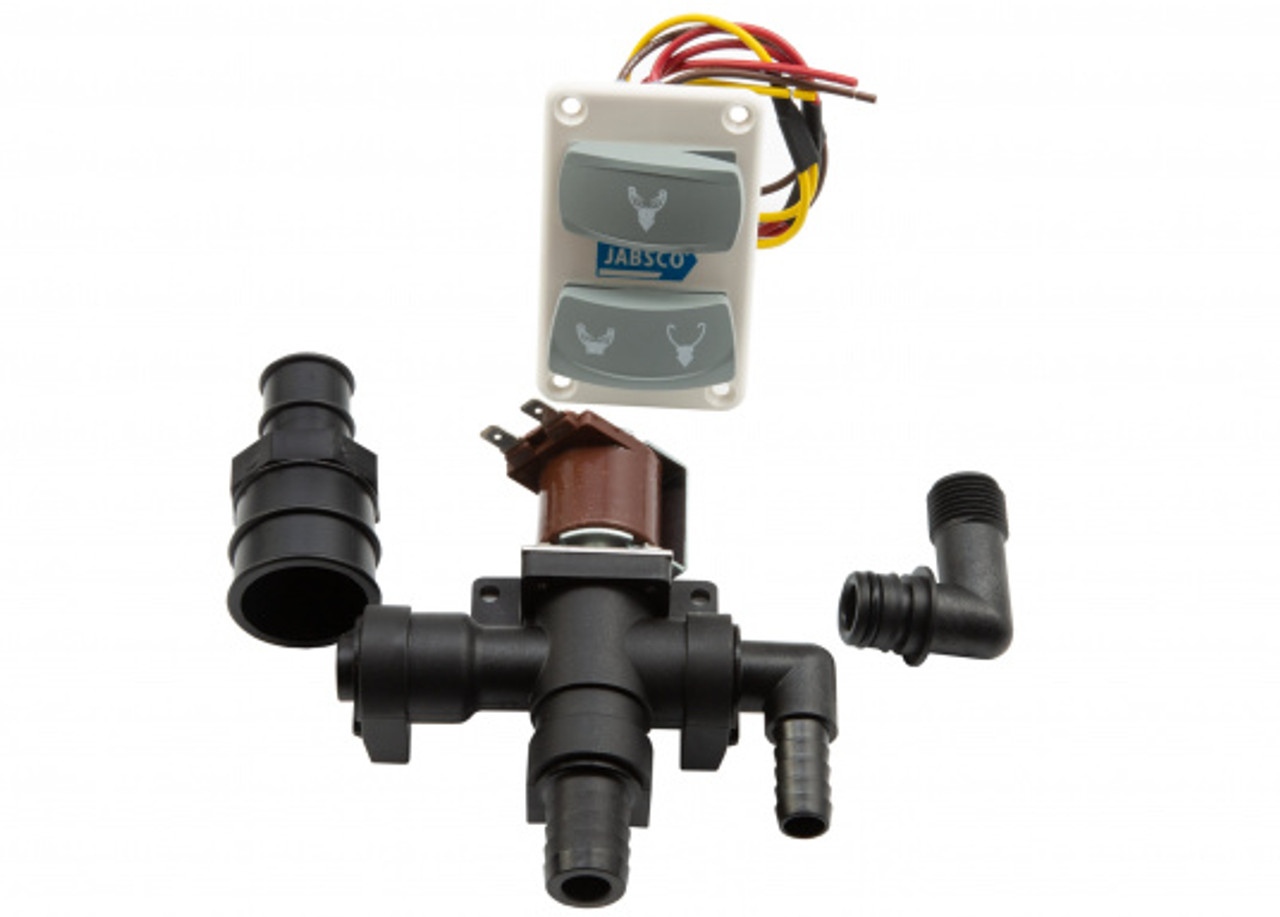

- Flush started by a single pushbutton - also includes dual function switch for water level control
- Can be connected to any pressurised water supply with a flow rate of 13.5 l/min
- Magnetic valve with backflow preventer protects against contamination of the drinking water supply
- Bowl made of white glass ceramic in compact design
- Enamelled seat and lid
- High-performance chopper and tank discharge pump
Technical data
| Connections | Inlet: 19 mm (3/4") Outlet: 25 mm (1") |
| Motor & switch | Complies with USCG 183.410 and ISO8846 MARINE for protection against ignition |
| Water consumption | 1-2 litres per flush |
| Material | Thermoset plastic |
| Weight: | 15 kg |
| Dimensions | 365 x 375 x 480 mm |
Item no.
24529
EAN
00671880628457
Model no.
37045-4194
Description
JABSCO - Board Toilet QUIET FLUSH
Toilet type
Electric
Operating voltage
24 V
Toilet size
Comfort
Flush water
Fresh water
Soft-close lid
Yes
with pump
No
Inlet-Ø
19 mm
Outlet-Ø
25 mm
Weight
15 kg
Seat height
335 mm
