Product Description

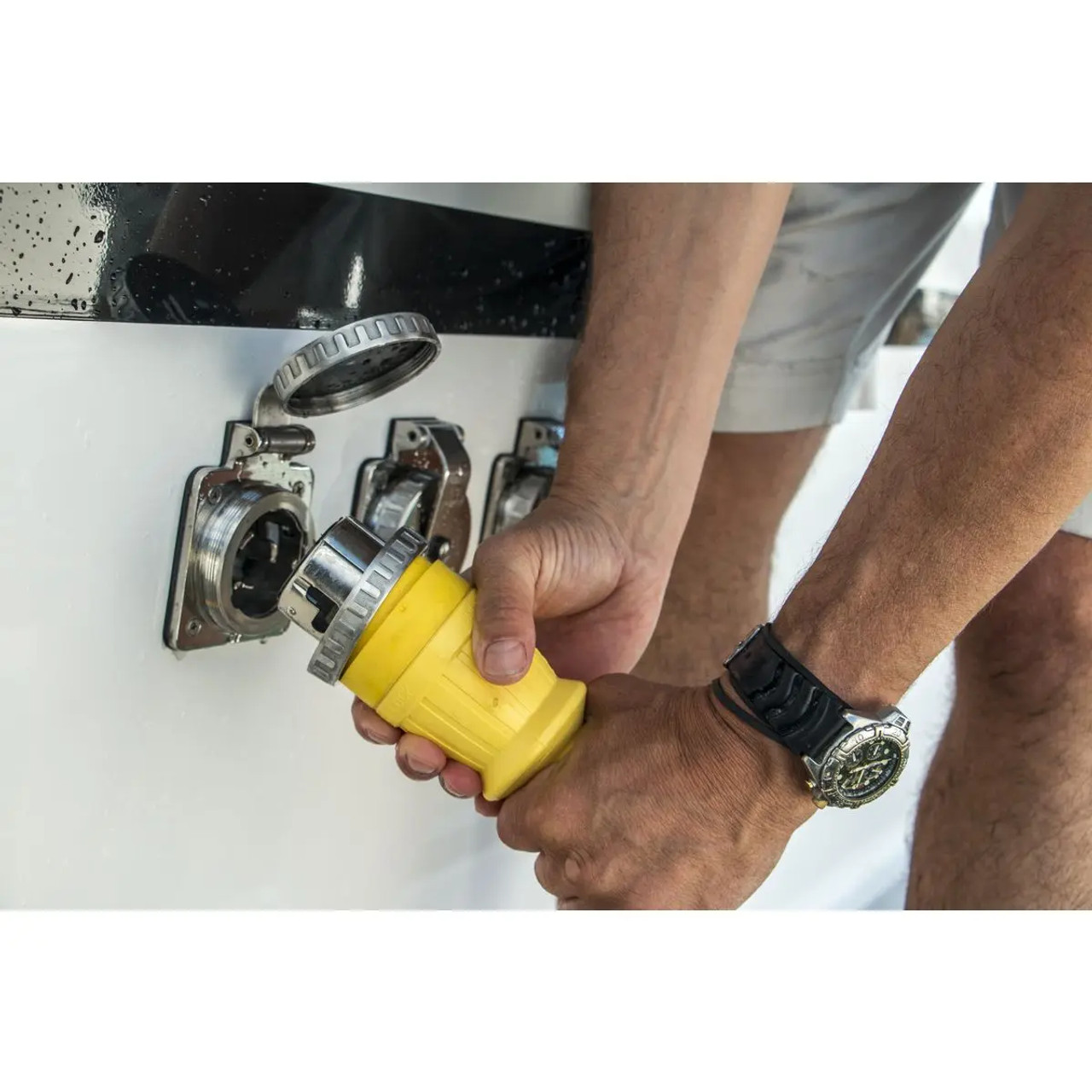

Locking Devices, Twist-Lock®, Marine Grade, Shore Power Inlet, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Chrome Plated Brass
- New quick connect with backwards compatibility
- Self-closing Friction Tight Cover
- Neoprene gasket on underside of cover for sealing
- Base and Cover are stainless steel for corrosion resistance
Product Details
General
| Application | Marine Wiring Devices |
| Color | Stainless |
| Environmental Conditions | Watertight |
| Insulation | Insulated Body |
| Item Type | Hull Mount Single |
| Material | Thermoplastic |
| Material - Mounting Hardware | Screw Mounting |
| Number Of Poles | 3-Pole |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Environmental - Moisture Resistance - IP56 Suitability |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact |
| UPC | 783585040585 |
Dimensions
| Display Size | Standard Sized Product |
Electrical Ratings
| Amperage Rating | 50 A |
| Connectivity | Pressure Terminal Screws |
| Current / Amperage Rating | 50 A |
| Current Rating | 50 A |
| Dielectric Strength | Withstands 3000V Minimum in |
| Phase | Single Phase |
| Voltage Rating | 125/250 VAC |
| Wattage | 12500 |
Conductor Related
| Number Of Wires | 4-Wire Grounding |
| Wire Size | #6 AWG |
Certifications and Compliance
| Industry Standard(s) | UL Listed |
